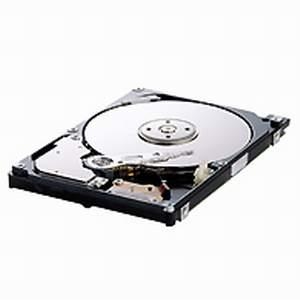

MP0302H product summary
SAMSUNG 30GB 2.5 UDMA100 5.4K 2MB HDD
- Manufacturer
- Samsung
- Interface Group
- PATA (IDE, UDMA, EIDE)
- Interface
- UDMA100
- Physical Size
- 2.5in
- Capacity
- 30GB
- Speed
- 5,400RPM
Samsung MP0302H 30GB PATA (IDE, UDMA, EIDE) Hard Disk Drives
Part Specific Options
MP0302H product details
Samsung Spinpoint M 30GB Ultra ATA Hard Drive 2.5" Ultra-ATA/133
Digitall Mobility "Provides the Most Reliable 2.5 inch Mobile Hard disk Drive". - Ultra ATA - 100. - FDB(Fluid Dynamic Bearing) Motor. - Load/Unload Technology. - GMR Head Technology with Wireless Suspension Design. - SilentSeek. - Silentec Hybrid Latch Technology.
Features
- Access time
- 12 ms
- Average latency
- 5.6 ms
- Bytes per sector
- 512
- Full stroke seek time
- 22 ms
- HDD capacity
- 30 GB
- HDD size
- 2.5"
- HDD speed
- 5400 RPM
- Interface
- Ultra-ATA/133
- Mean time between failures (MTBF)
- 330000 h
- Start/stop cycles
- 300000
- Storage drive buffer size
- 8 MB
- Track to track seek time
- 2 ms
Operational conditions
- Non-operating altitude
- -305 - 12200 m
- Non-operating shock
- 350 G
- Operating altitude
- -305 - 3050 m
- Operating relative humidity (H-H)
- 5 - 90%
- Operating shock
- 250 G
- Operating temperature (T-T)
- 5 - 55 °C
- Storage relative humidity (H-H)
- 5 - 95%
- Storage temperature (T-T)
- -40 - 70 °C
Other features
- Drive device, transfer rate
- 100 MB/s
- Drive ready time
- 4 s
- Internal
- Y
- Power requirements
- +5V±5%
Power
- Operating voltage
- 5 V
- Power consumption (standby)
- 0.25 W
Weight & dimensions
- Depth
- 70 mm
- Height
- 9.5 mm
- Weight
- 100 g
- Width
- 100 mm
