HD103UI product summary

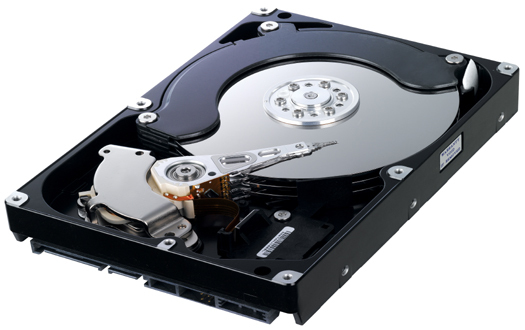

SAMSUNG 3.5IN SATA300 1TB 5400RPM HDD
- Manufacturer
- Samsung
- Interface Group
- SATA
- Interface
- SATA300
- Physical Size
- 3.5in x 25mm
- Capacity
- 1TB
- Speed
- 5,400RPM
Samsung HD103UI 1TB SATA Hard Disk Drives
Part Specific Options
HD103UI product details
Samsung SpinPoint F1 SpinPoint EcoGreen F1 DT 1TB 1000 GB Serial ATA
- Max. 334GB Formatted Capacity per Disk - Serial ATA 3.0Gbps Interface Support - Improved recording stability over temperature with PMR - Advanced dynamic FOD control for best data integrity - Intelligent compensation of external disturbance - SATA Native Command Queuing Feature - Device Initiated SATA Power Management - Staggerd Spin-up Support - Environment friendly product with RoHS compliance - Improved performance with dual-ARM based firmware - ATA S.M.A.R.T. Compliant - ATA Automatic Acoustic Management Feature - ATA 48-bit Address Feature - ATA Device Configuration Overlay Feature - NoiseGuard™ - SilentSeek™
Features
- Average latency
- 5.52 ms
- Average seek time
- 8.9 ms
- Bytes per sector
- 512
- HDD capacity
- 1000 GB
- HDD speed
- 5400 RPM
- Interface
- Serial ATA
- Start/stop cycles
- 50000
- Storage drive buffer size
- 32 MB
Operational conditions
- Non-operating altitude
- -300 - 12000 m
- Non-operating shock
- 300 G
- Operating altitude
- -300 - 3000 m
- Operating relative humidity (H-H)
- 5 - 90%
- Operating shock
- 70 G
- Operating temperature (T-T)
- 0 - 60 °C
- Storage relative humidity (H-H)
- 5 - 95%
- Storage temperature (T-T)
- -40 - 70 °C
Other features
- Data transfer rate
- 3 Gbit/s
- Dimensions (WxDxH)
- 101.5 x 147 x 26.1 mm
- Drive ready time
- 12 s
- Internal
- Y
- Power requirements
- +5V±5%, +12V±10%
Power
- Power consumption (standby)
- 0.5 W
- Power consumption (typical)
- 5.6 W
- Start-up current
- 2 A
Weight & dimensions
- Weight
- 640 g
