Netgear GSM7248 OTHERS NET

GSM7248 product summary

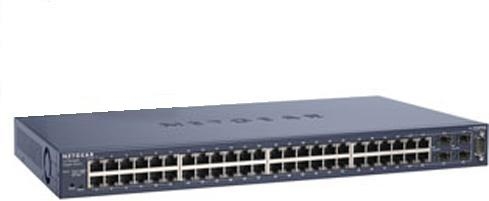

NETGEAR GSM7248 48 PORT MANAGED SWITCH

Manufacturer
Netgear
Interface Group
OTHERS
Interface
N/A
Physical Size
N/A

Netgear GSM7248 OTHERS NET

Part Specific Options

This part has the following options to purchase.

Refurbished
Call for stock

GSM7248 product details

NETGEAR ProSafe™ 48 Port Gigabit L2 Managed Switch

NETGEAR delivers wirespeed Gigabit performance and a full set of Layer 2 management features with unsurpassed affordability. This next-generation, high-speed switch delivers maximum throughput where you need it — to high-performance workgroups at the edge of the network, or as a backbone for Fast Ethernet switches and high-speed servers in demanding small networks. The non-blocking design offers full Gigabit throughput simultaneously to all 48 10/100/1000 ports to ensure reliable performance. Flexible fiber connectivity is enabled through four combination Small Form-factor Pluggable (SFP**) gigabit interfaces. Layer 2 management functionality delivers reliability, control, and availability. The very affordable NETGEAR ProSafe 48 Port Gigabit L2 Managed Switch GSM7248 creates a more productive — and future-proof — network. With increasing bandwidth requirements from applications such as voice, video, database management, and other services that slow throughput and response time, you can unleash your network and enable maximum productivity with Gigabit Ethernet for today’s high-performance environments. Optimize bandwidth, security, and control with full Layer 2 management capabilities. Network administrators can use any combination of these features to ensure uptime, availability, bandwidth and throughput.

Data transmission
MAC address table
8000 entries
Maximum data transfer rate
1 Gbit/s
Packet buffer memory
0.122 MB
Switching capacity
96 Gbit/s
Design
LED indicators
Link
Safety
CE mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/CUL IEC950/EN60950
Network
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
95
Storage temperature (T-T)
-20 - 70 °C
Other features
Acoustic pressure emissions
47 dB
Data transfer rate
1000 Mbit/s
Dimensions (WxDxH)
440 x 257 x 43 mm
Electromagnetic emissions
CE mark, commercial; FCC Part 15 Class A; VCCI Class A-EN 55022 (CISPR 22), Class A; C-Tick
I/O ports
-48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink and auto-negotiate on all ports) -4 SFP connectors for fiber connection (shared with the last four copper ports) - RS-232 Console Port
Latency
20µs for 64-byte frames
Power requirements
100-240VAC/50-60 Hz
Performance
Internal memory
64 MB
Mean time between failures (MTBF)
57800 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Power
Power consumption (typical)
90 W
Protocols
Data link protocols
Ethernet/ Fast Ethernet/ Gigabit Ethernet
Weight & dimensions
Weight
4.2 kg
