Netgear GS105E OTHERS NET

GS105E product summary

NETGEAR PROSAFE® GS105 5-PORT GIGABIT DESKTOP SWIT

Manufacturer
Netgear
Interface Group
OTHERS
Interface
N/A
Physical Size
N/A

Netgear GS105E OTHERS NET

Part Specific Options

This part has the following options to purchase.

Refurbished
Call for stock

GS105E product details

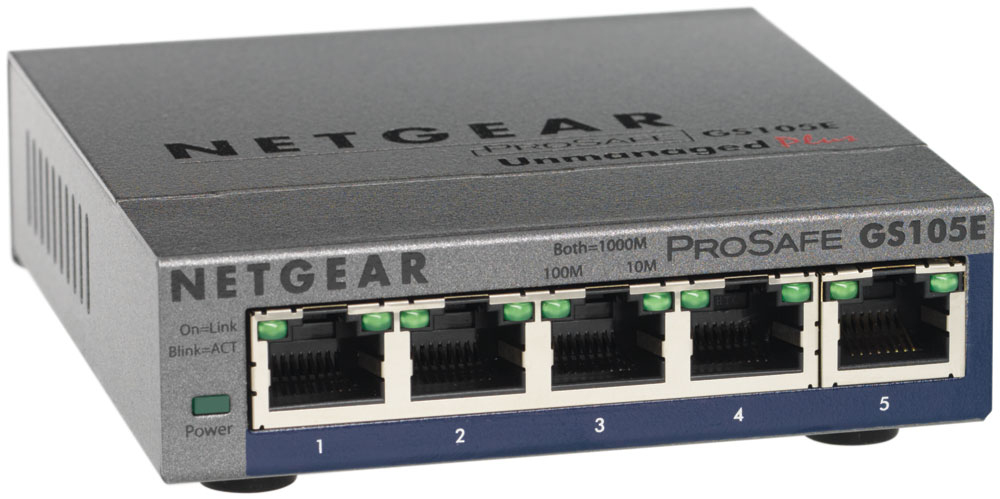

NETGEAR ProSafe Plus 5 Port Gigabit Ethernet Switch Unmanaged

-Use as a Plug-and-Play switch or use the configuration utility for simple setup. -Support network monitoring, traffic prioritization and virtual network groups. -Green Ethernet for reduced power consumption. Gigabit Power, 10/100 Simplicity Today's growing businesses are both placing more demands on and relying more on their network. Companies are putting more applications and demands on their Ethernet Infrastructure. Using VoIP phones and IP cameras require more than simple plug-and-play connectivity. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing easy to use visibility and limited configuration capabilities. To provide more insight into the network behavior, ProSafe Plus Switches offer traffic monitoring for users to observe traffic behavior. Additionally, if there are connectivity issues, these switches offer a cable diagnostic test capability that can identify and even locate problems in the cables. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, as a means of improving security or managing collision domains, ProSafe Smart Switches offer VLAN technology. ProSafe Plus Switches offering these monitoring and configuration capabilities at a slight cost premium over un anaged switches, delivering great value to the end user. Additionally, furthering NETGEAR's support of the environment, ProSafe Plus Switches have power-saving Green Ethernet technology. The GS105E switch comes in a sturdy metal case with a fan-less design for silent operation.

Data transmission
MAC address table
4096 entries
Maximum data transfer rate
2 Gbit/s
Design
Safety
UL listed (UL 1950)/CUL, CB
Stackable
N
Management features
Quality of Service (QoS) support
Y
Switch type
Unmanaged
Network
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
Flow control support
Y
Full duplex
Y
Networking standards
IEEE 802.1p,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u
Operational conditions
Operating relative humidity (H-H)
0 - 90%
Operating temperature (T-T)
0 - 50 °C
Other features
Bandwidth
10 Gbit/s
Connectivity LEDs
Y
Connectivity technology
Wired
Dimensions (WxDxH)
94 x 104 x 28 mm
Electromagnetic emissions
CE mark, FCC 15 B, EN 55022 (CISPR 22) B, VCCI B, C-Tick
Networking features
Gigabit Ethernet
Power requirements
12V, 1.0A
Performance
Mean time between failures (MTBF)
5905968 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Power
Power consumption (typical)
4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Weight & dimensions
Weight
300 g
