FS524 product summary
NETGEAR FS524 FANLESS SILENT VERSION 24-PORT FAST
- Manufacturer
- Netgear
- Interface Group
- OTHERS
- Interface
- N/A
- Physical Size
- N/A
Netgear FS524 OTHERS NET
Part Specific Options
This part has the following options to purchase.
- Refurbished
- Call for stock
FS524 product details

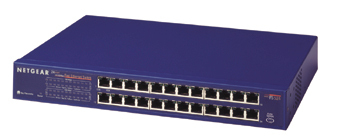

NETGEAR FS524 network switch Unmanaged
- Runs in full-duplex mode, delivering 200 Mbps of network speed on all 24 network ports - The ports automatically sense the right network speed: 10 or 100 Mbps and duplex mode - Integrated port LEDs simplify installation and make network monitoring very easy - Built into sturdy metal cases, the FS524 switch can be mounted in a 19-inch rack NETGEAR's FS524 Fast Ethernet Switch provides a cost effective way to increase network performance while preserving most of your network investment. The FS524 is ideal for intermixing 10 and 100 Mbps devices. Easy to set up and use, the FS524 begins operating as soon as it is powered up.
Data transmission
- MAC address table
- 4000 entries
- Maximum data transfer rate
- 0.1 Gbit/s
Design
- Safety
- UL (UL 1950)/CUL, TUV (EN 60 950)
- Stackable
- Y
Management features
- Switch type
- Unmanaged
Network
- Full duplex
- Y
Operational conditions
- Operating relative humidity (H-H)
- 0 - 80%
- Operating temperature (T-T)
- 0 - 40 °C
Other features
- Connectivity technology
- Wired
- Data transfer rate
- 100 Mbit/s
- Dimensions (WxDxH)
- 330 x 202 x 43 mm
- Latency
- 80 usec
- Power requirements
- 100 - 240V, 50/60 Hz
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
Power
- Power consumption (typical)
- 30 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- N
Protocols
- Data link protocols
- Ethernet, Fast Ethernet
- Switching protocols
- Ethernet
Weight & dimensions
- Weight
- 2.6 kg
